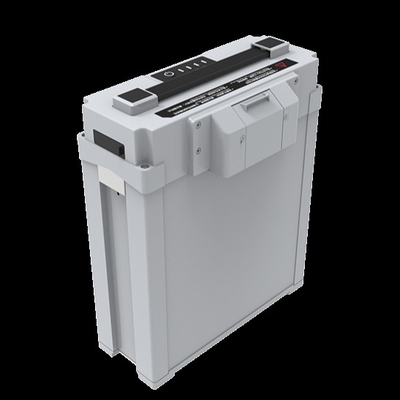

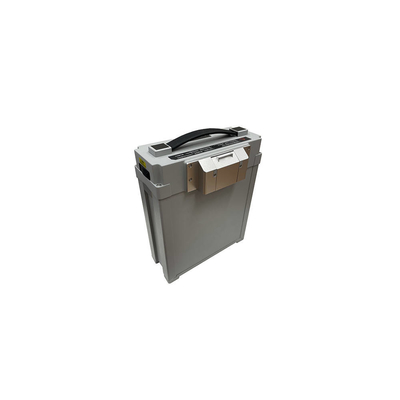

AGRAS A22 Agriculture Sprayer 22000 Battery As Agriculture Drone Parts and Accessories

Large Image : AGRAS A22 Agriculture Sprayer 22000 Battery As Agriculture Drone Parts and Accessories

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	AGR
Model Number:	/

Contact Now

Detailed Product Description

Type:	/	Capacity:	22000mah
Net Weight:	8.5kg	Warranty:	12months
Warranty2:	400cycles	Voltage:	51.8V
Size:	236.3115.7290.8mm	Certification::	CE,ROHS

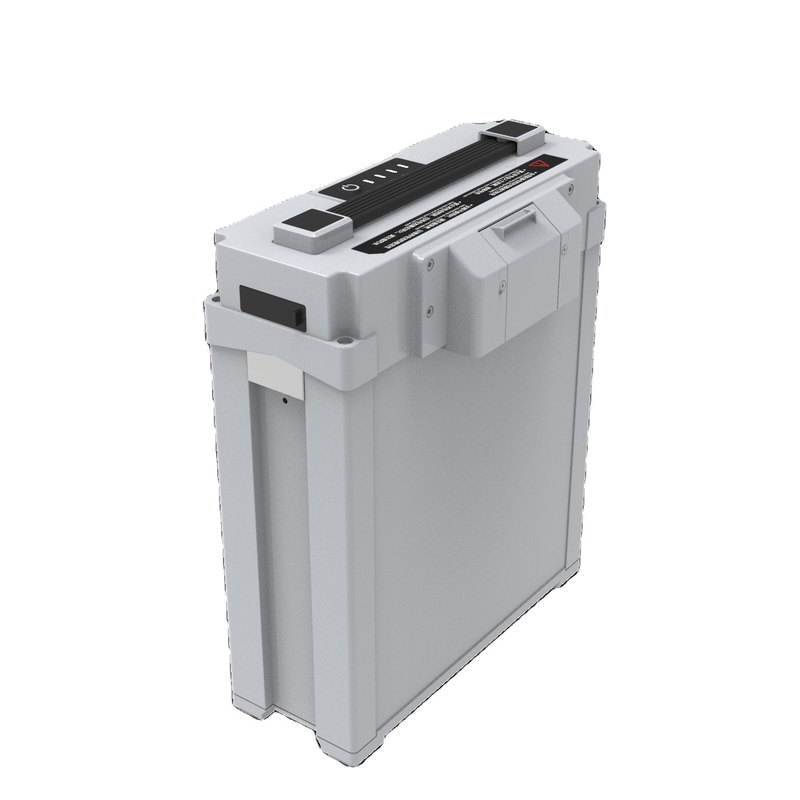

Products Description

Efficient charging, longer battery life

* Warranty: 12months or 400 cycles

*Standard voltage：50.4V
*Nominal power：22000mAH
*Charging voltage：58.8V
*Recharging current：Max≤57A（3C）
*Discharge voltage：51V—58.8V
*Working temperature (discharge)：-10℃－+60℃
*Working temperature (charging)：0℃－+45℃
*Storage temperature：-10℃－+35℃
*Weight：8.5±0.3KG
*Size (length, width and height)：
236.3mm *115.7mm*290.8mm

* IP65, equipped with AG3 Pro intelligent

power management system

*also can power the remote control, RTK
base station, etc.

Fuel Charger AGRC6000

Two-way quick charge can be realized, and two batteries can be fully charged within 20 minutes to improve battery turnover
(Compatible with Q10 21 version batteries and A22 batteries)

Battery charger

Charging current: fast charge 45A
Slow charge mode: slow charge 12.5-20A
Charging power consumption: 100—180V 1500W
180—240V 3000W
Charging time: fast charge 20 minutes to fully charge a battery
Slow charge time: 90 minutes full charge with four batteries
Protection function: short circuit, reverse connection, over temperature protection
Maximum output power consumption: 3000W
Weight: 6.2KG
Size: 303mm*150mm*220mm
Input voltage / frequency: 100—240V / 50—60Hz

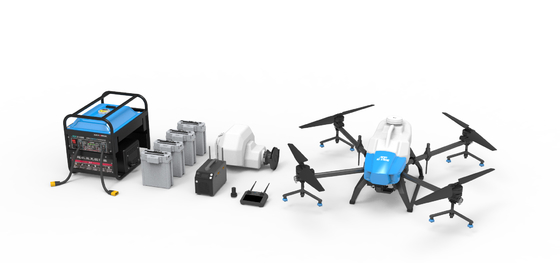

Classic design, increased efficiency

A22 is AGR's highest-capacity drone with 22L plugable tank. The high-pressure injection-molded composite carbon fiber nylon frame allows up to 22L payload to be lifted in the air. The redesigned T-profile nozzle
arrangement takes application efficiency to a new level. Equipped with the innovative AG3Pro intelligent on-board control system,The drone is equipped with an innovative AG3Pro intelligent airborne control system, which opens up opportunities for precision agriculture for anyone at an affordable price

Body size (mm):	1200×1191×570	Remote control distance (m):	2000
Packing size (mm):	1025×755×580	Ground clearance (m):	30
Net weight (KG):	19	Battery weight (KG):	8.5
Full load takeoff weight (KG):	49.5	Battery size (mm):	290×236×116
Operating area (Ha/hour):	4-14	Charging time (minutes):	15-40
Single flight operation area(1L/mu):	21mu	Charger size (mm):	303×150×220
Droplet size (μm):	80-250	Charging power (w):	2400
Flow rate (L/min):	1-8	Carry idler hovering power (w):	2500
Spray width (m):	3-8	Fully loaded hovering power (w):	5500

Main characteristics:
* 22 liter capacity
* Flow rate 8 liters / minute
* Up to 8 meters spreading width
* Radar terrain tracking and obstacle avoidance
* Dual FPV camera
* Fast charging in up to 20 minutes

Contents of the package:
* AGR A22 spray drone
* Remote controller
* Mission planning software
* USB cables
* Neck strap
* The AGR A22 drone battery is not included in the package, according to the required quantity it can be ordered separately
* The AGR A22 drone battery charger is not included in the package, according to the required quantity it can be ordered
separately

AG3Pro Intelligent Flight control system

The integrated control system has become lighter and more resilient than its predecessors, thanks to its modular,
cable-free design. The drone fully complies with the IP67 protection rating, it has a completely dust and waterproof base
plate. Its stable and reliable arithmetic allows for worry-free installation of future expansion modules.

Four ways to adjust the dose
The A22 offers four different dose adjustment options to suit your needs.
Manual mode: The simplest mode, with any mass flow from button press to button press.
Speed mode: Proportional spray mode, after setting the maximum mass flow, the drone sprays in proportion to its flight speed.
Accuracy mode: The most commonly used application mode, in which the rate of application per hectare can be specified (ml / Ha)

Accurate obstacle avoidance,Greater protection for safety

A22 RTK supports millimeter-wave ground-simulating radar and obstacle avoidance radar to realize terrain following and obstacle
collision warning. If encountered obstacles, you can choose to hover or bypass the obstacles to improve flight safety.

AGR Intelligent Sowing System

26 liters large capacity, accurate and efficient spreading
The spreading system is equipped with a 25L capacity pesticide tank,
The 360° omnidirectional spreading turntable can make the spreading rate reach 50L per minute and the working radius can reach ten meters.
Taking urea as an example,if we need to complete a spreading rate of 150 kilograms per Ha, set a speed of 7.5 m/s, and an effective spreading diameter of 6 meters. It takes about 12 minutes to spread a bucket and the working area is about 1 Ha with a very high efficiency and evenly., AGR spreader can quantify seeds, fertilizers, feed and other particles to the target area at high speed and evenly, support 0.5mm-5mm particle spreading

Dual HD FPV, real-time monitoring of the screen

2 RTK is equipped with dual high-definition FPV cameras for forward and downward viewing, real-time image transmission improves
flight safety and operational efficiency. The FPV screen and operation interface can be quickly switched on the APP . Through the
visual imaging in front and below the flight, combined with the AG3 Pro intelligent algorithm, the image dotting and intelligent
correction function are realized. Greatly reduce the work intensity and cost of field surveying and mapping. Improve the accuracy
and efficiency of flight management.

Easy operation, stable image, high UI adaptability, up to 8 hours of battery life REMOTE CONTROL

RTK APP 3.0 software provides manual, AB point, route planning and other operation modes. It can feed back or adjust the operation
data in real time, and quickly resume the breakpoint operation after adding medicine and changing the battery. The operation is
simple. The overseas version of the APP realizes free switching between English, Portuguese, Spanish, Japanese, Korean and other
over 10 Chinese language versions.

AGR DRONE PACKAGE

Usually we offer carton boxes or wooden cases, inner with plastic film wrapped, or
customized foam or aluminum suitcase, we will offer package pictures for customer
reference before delivery out the goods.

Company Profile

AGR AGRICULTURE DRONE

In 2015, a group of ambitious engineers established the AGR, aiming to make plant-protection work easier, safer and more
efficient. Today, we not only manufacture plant-protection drones, but also promoter of agricultural technology

R&D headquarter

Our R&D team was consisted of hardware, structure, spraying system ,embedded software, control algorithm, web devlopment ,navigation algorithm and Android development engineer.

Factory

We have standard traning system, production line , inspection system , excellent warehouse management system , and timingly after-sale service

AGR drones in different countries

FAQ

Q: How to fly the drones?
A: There are operating manual and video to teach the operation. You can also come to our company for free training.

Q: Are your drone waterproof?
A: Yes, the drone passed IP67

Q: Does your agriculture drone can set routes?
A: Yes, there are 3ways for you to set different crop area. Manual mode , AB Point mode , and automotic flight

Q: What capacity drone do you have?
A: Depends on your requirement , we have different capacity for your reference .there are 6liter, 10liter, 16liter and 22 liters
drone.

Q: How many hectares can the drone can cover one day?
A: From 30-50 hectares, depends on the capacity.

Q: Can the drone spray the high trees?
A: Yes, we designed the fogger drone.

Q: Can the drone spray the fertilizers and seeds?
A: Yes. we have lastest version sowing drone which could spread seeds , fertilizer , feed and other granual ranges from 0.5 to 5mm

Q: Does it have the FPV camera and light?
A: Yes. Normally we have dual cameras , one is forward ,another one is downward

Q: Which flight controller do you use?
A: the lastest version is AGR PRO 3.0
