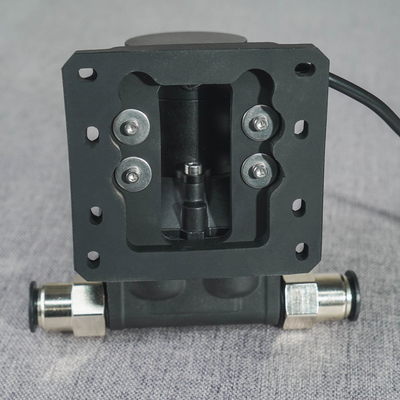

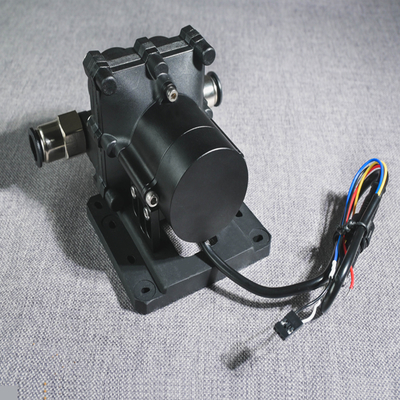

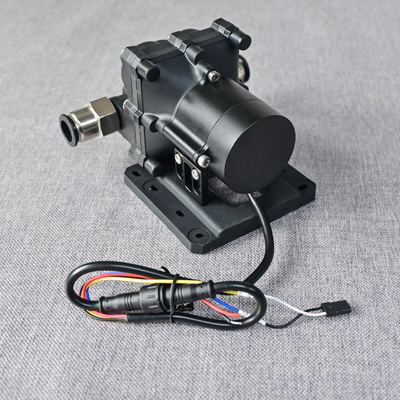

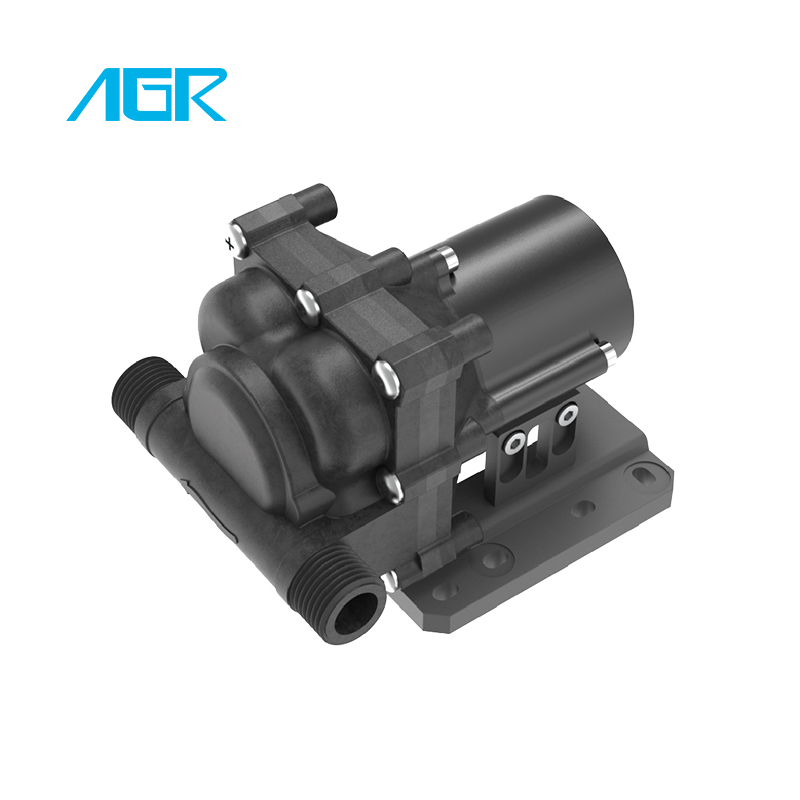

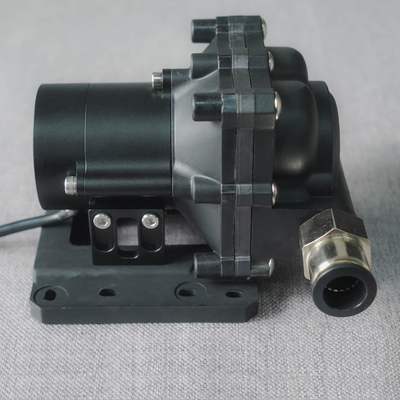

12L Integrated Brushless Diaphragm Pump for Automation Agricultural Drones Agricultural Machinery Parts

Large Image : 12L Integrated Brushless Diaphragm Pump for Automation Agricultural Drones Agricultural Machinery Parts

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	AGR

Contact Now

Detailed Product Description

Warranty:	1 Year	Weight (kg):	5 KG
Video Outgoing-inspection:	Not Available	Machinery Test Report:	Not Available
Type:	Pump	Use:	Agriculture Drone
Material:	Iron	Condition:	New
Showroom Location:	None	Marketing Type:	Ordinary Product
Applicable Industries:	Agriculture Drone

Nowadays, impeller pumps with high flow rates of the same level cannot achieve this self suction function. The advantage of self suction is that the installation position of the pump is not limited and can be installed at points higher than the liquid level. The impeller pump (used by DJI and eft) can only be installed at the lowest position of the medicine box, and the medicine liquid needs to be added. After the medicine liquid flows into the pump body, the pump water can be pumped out.

12L Integrated Brushless Diaphragm Pump

Suitable for 12-18S agriculture drones

Power supply range 30-80V

Using PWM signal control

Parameter

Operating voltage	14-18S
Rated power	110W
Working pressure	0.1-1.0Mpa
Working current	≤ 1.5A
Opening flow rate	12L/Min
Protection level	IP67
Working temperature	-20-85 ° C
Size	125 * 100 * 90mm
Inlet water pipe	12-10mm
Outlet water pipe	12-10mm
PWM throttle stroke	1021-1600 μ S
Operating voltage	14-18S
Rated power	110W
Working pressure	0.1-1.0Mpa

Multiple protection mechanisms

Overcurrent&Locked rotor protection

The electric regulator will immediately execute the current protection function and restart the operation when pump blocked and current increasing.

Over Temperature Protection The pump will stop working when the working temperature is too high and will restore itself when cool down.

Loss of Signal Alarm

Undervoltage protection

Overvoltage protection

Ultra long service life

Continuous full load operation for over 800h

No worries about frequent water pump damage Replacement delays operations while reducing after-sales costs.

Verification of continuous alternating cold and hot experiments No fears of even the worst working environment.

Large flow brings high work efficiency

Up to open flow rate of 12 L/min

Up to 16 sets of nozzles (VP110015) can be connected for use; The cost of using a pressure nozzle is lower, but it will result in a loss of efficiency.

Parter with centrifugal nozzles to maximize efficiency.

IP67 water proof

Equipped with waterproof threaded plugs

Simple Installation and maintenance, the pump can be replaced on site if it goes wrong and continue to work

After work, the pump can be rinsed directly to reduce pesticide corrosion

Easy to install, high adaptability

Title goes here.

High strength rubber base with built-in shock absorption effect

Both the outlet and inlet channels use: Quarter threaded joint (inner diameter ≈ 18mm)

The connector model can be paired anywhere
